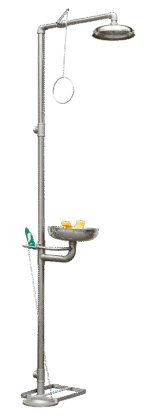

STAINLESS STEEL EYE WASH COMBINATION AND SHOWER 8104

Technical Data Sheet

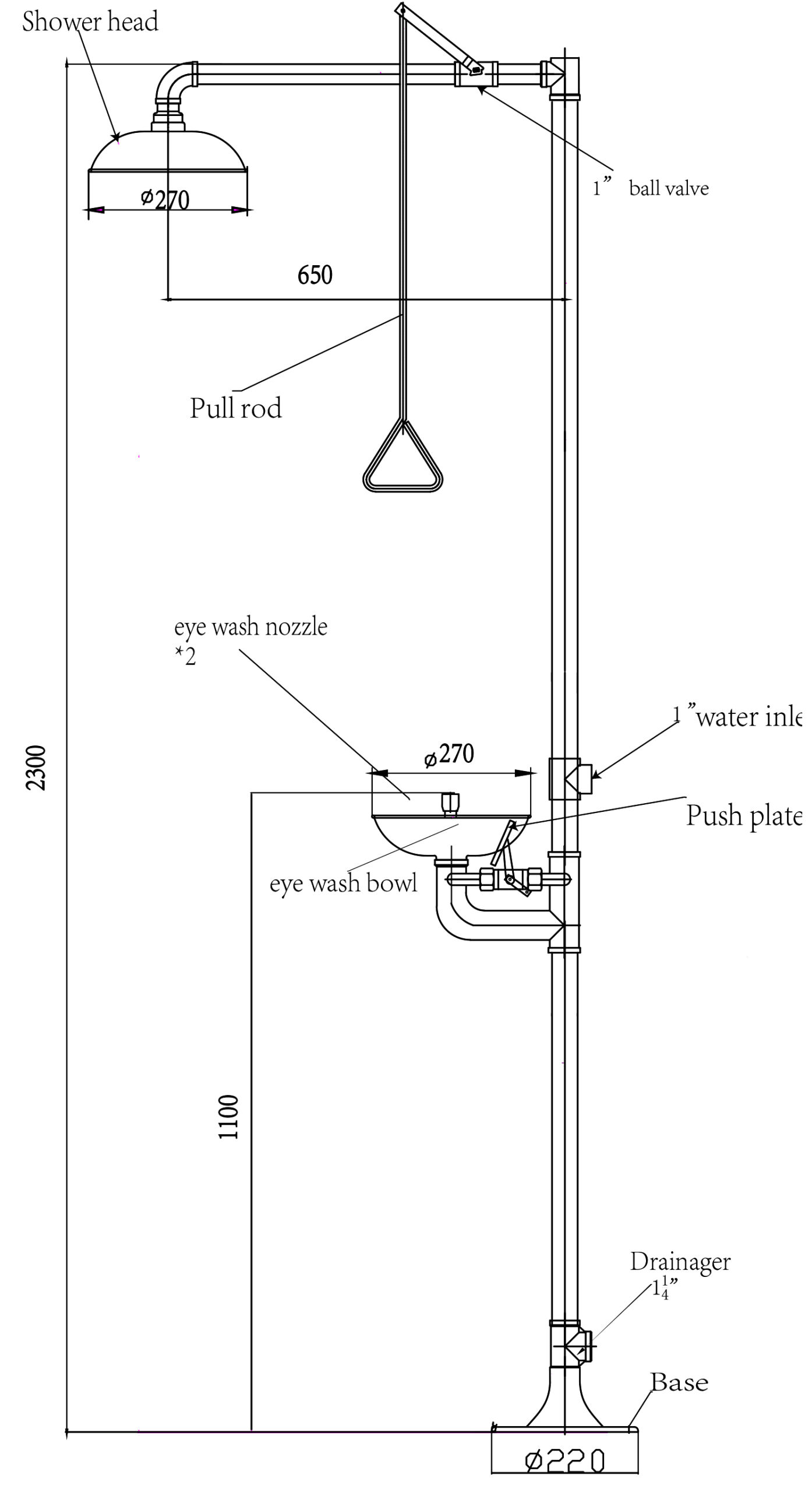

FEATURES

• Inlet Connection Size & Type : 1” NPT (Female thread)
• Shower Operation : Pull Rod
• Eye wash Operation : Hand Push
• Supply Pressure : 2 bar minimum – 0.45 bar maximum
• Flow At Operating Pressure : Shower > 76 liters/minute,
Eyewash > 12 liters/minute
Working Condition : Water Source temprature: 5~35°C , Air temprature 5~37°C

MATERIAL OF CONSTRUCTION

• Shower Head : 10.6” Stainless Steel
• Valve Materials : Stainless Steel 204
• Eyewash Bowl : 10.6” Stainless Steel
• Eye Wash Nozzle : Stainless Steel
• Ground Legs : Stainless Steel
• Pull Rods For Valve Actication : Stainless Steel
