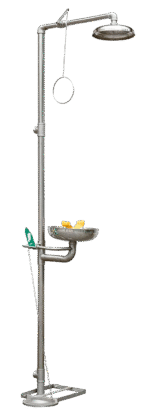

STAINLESS STEEL EYEWASH COMBINATION AND SHOWER

TESTED & CERTIFED PRODUCTS

  •

Technical Data Sheet

Download

FEATURES

• Inlet Connection Size & Type : 1” NPT (Female thread)
• Shower Operation : Pull Rod
• Eye wash Operation : Hand Push
• Supply Pressure : 2 bar minimum – 0.45 bar maximum
• Flow At Operating Pressure : Shower > 76 liters/minute, Eyewash > 12 liters/minute
Working Condition : Water Source temprature: 5~35°C , Air temprature 5~37°C

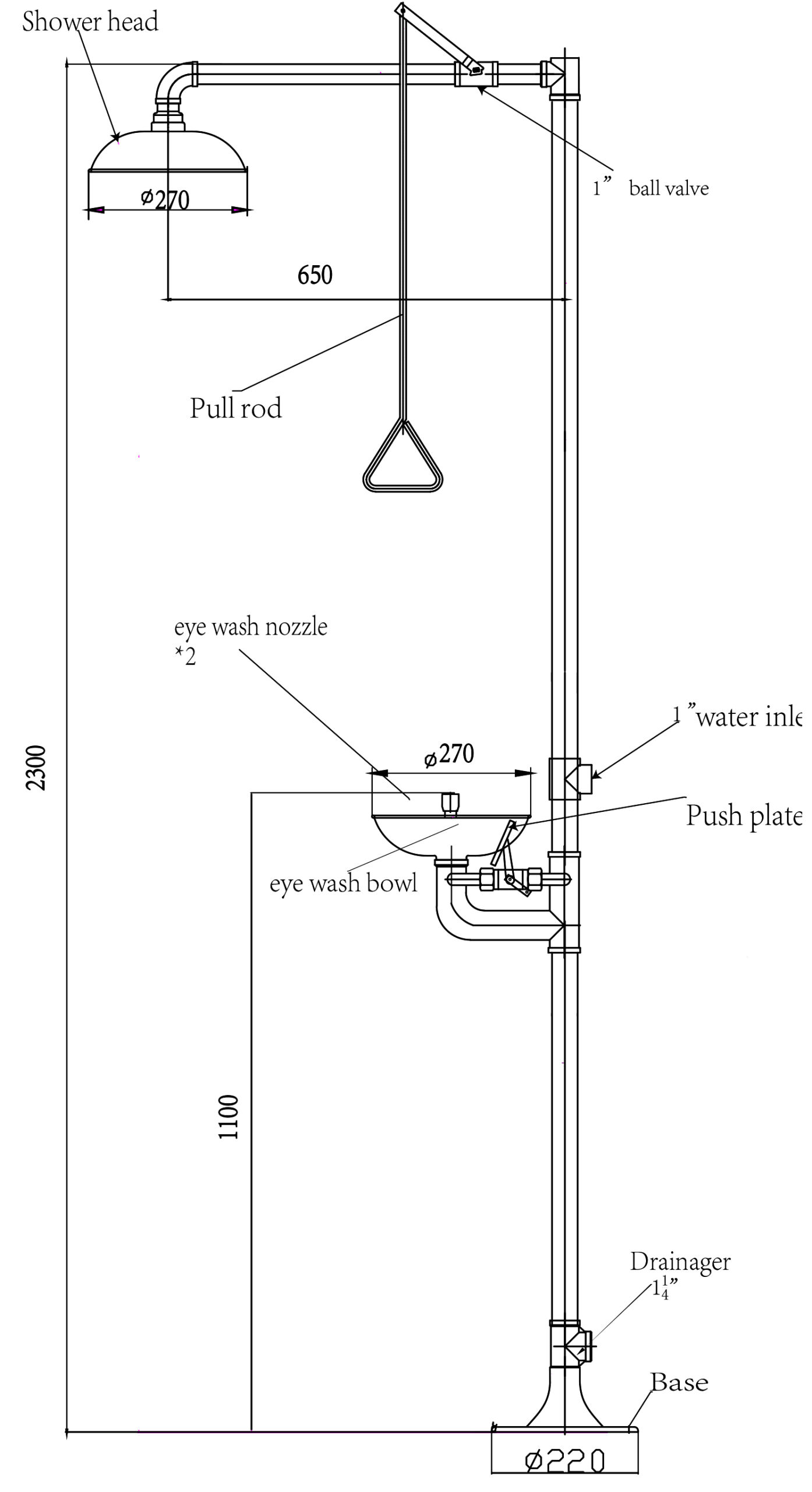

MATERIAL OF CONSTRUCTION

• Shower Head : 10.6” Stainless Steel
• Valve Materials : Stainless Steel 306
• Eyewash Bowl : 10.6” Stainless Steel
• Eye Wash Nozzle : Stainless Steel
• Ground Legs : Stainless Steel
• Pull Rods For Valve Actication : Stainless Steel
